Create your server endpoint

Set up an HTTP/HTTPS endpoint that accepts POST requests.
Node
import { UponAI } from "uponai-sdk";
import express from "express";

const app = express();
app.use(express.json());

app.post("/webhook", (req, res) => {
  const { event, call } = req.body;
  switch (event) {
    case "call_started":
      console.log("Call started", call.call_id);
      break;
    case "call_ended":
      console.log("Call ended", call.call_id);
      break;
    case "call_analyzed":
      console.log("Call analyzed", call.call_id);
      break;
    default:
      console.log("Unknown event:", event);
  }
  res.status(204).send();
});
2

Test your endpoint locally

Test with this curl command before going live:
curl --location 'localhost:8080/webhook' \
--header 'Content-Type: application/json' \
--data '{
  "event": "call_ended",
  "call": {
    "call_type": "phone_call",
    "from_number": "+12137771234",
    "to_number": "+12137771235",
    "direction": "inbound",
    "call_id": "Jabr9TXYYJHfvl6Syypi88rdAHYHmcq6",
    "agent_id": "oBeDLoLOeuAbiuaMFXRtDOLriTJ5tSxD",
    "call_status": "registered",
    "start_timestamp": 1714608475945,
    "end_timestamp": 1714608491736,
    "disconnection_reason": "user_hangup",
    "transcript": "..."
  }
}'
3

Expose your local endpoint

Use ngrok to make your local server reachable:
# Install ngrok
brew install ngrok/ngrok/ngrok

# Expose your local server
ngrok http http://localhost:8080
Your webhook URL will be something like https://84c5df474.ngrok-free.dev/webhook.
4

Register your webhook endpoint

Choose one of two options:
  • Account-level webhook — Set up in Settings > Webhooks tab. Fires for all agents in your account.
  • Agent-level webhook — Set via the webhook_url field on the agent. When set, the account-level webhook will NOT fire for that agent.
Configure your webhook URL and select which events to receive. Enable Webhook Authentication to require credentials for added security.

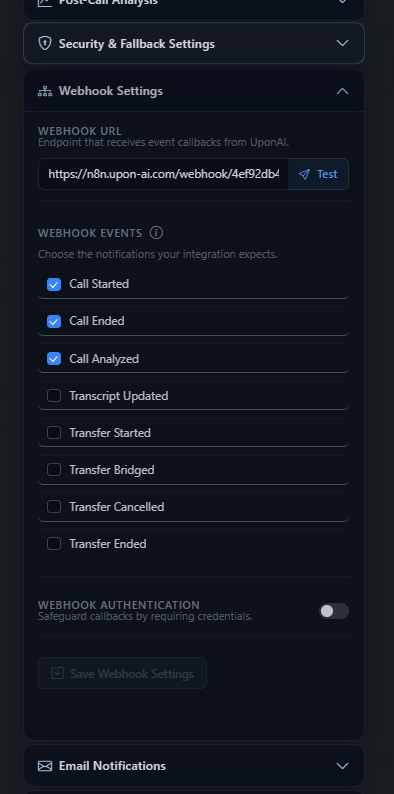

Webhook Settings panel showing webhook URL, event checkboxes (Call Started, Call Ended, Call Analyzed, Transfer events), and Webhook Authentication toggle
5

Verify your webhook

Start a web call in the dashboard to confirm the webhook fires correctly.
